Szczegóły Produktu:
|
| Podkreślić: | Ultra-high Filtration Efficiency,Full Chemical Compatibility,Cost-saving Operation |
||
|---|---|---|---|

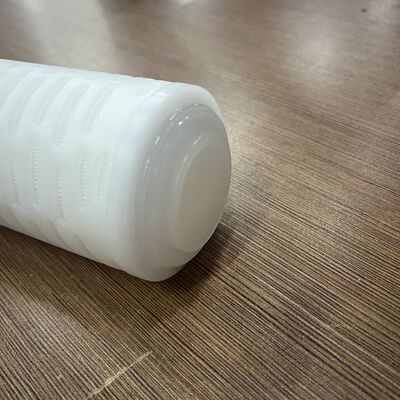

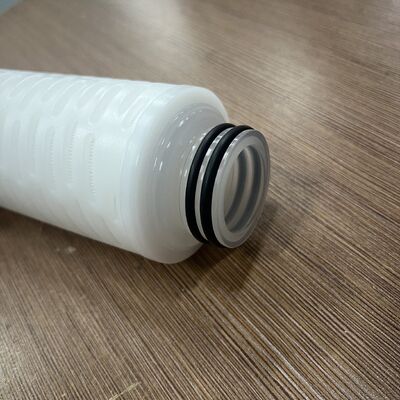

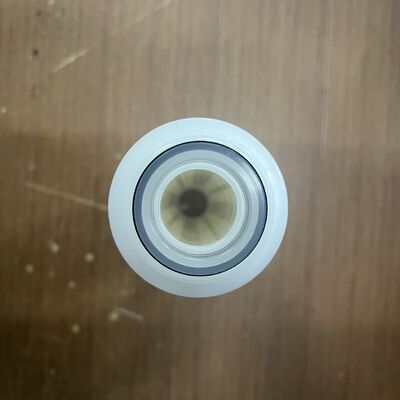

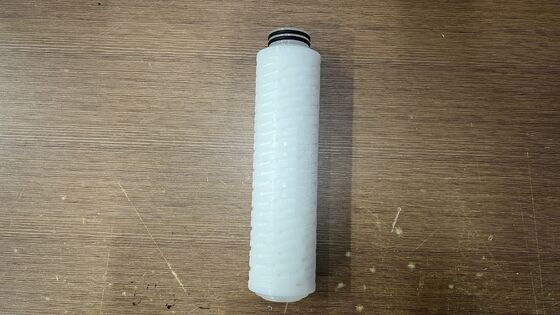

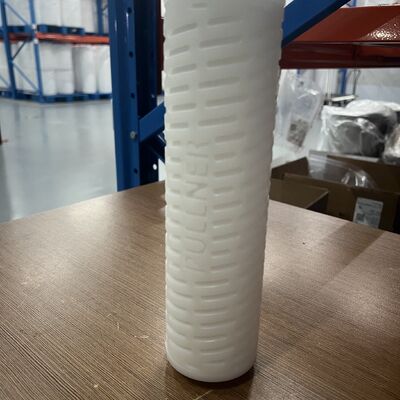

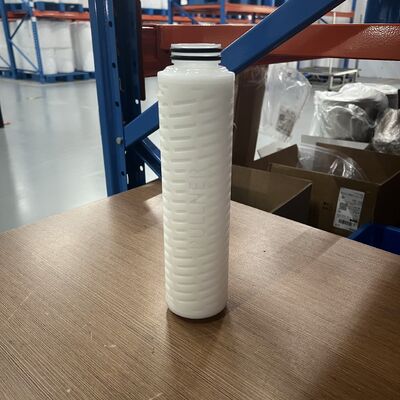

The PFL series flter cartridge uses PTFE flter membrane, offering excellent chemical compatibility and natural hydrophobicity. Strictly controls metal ion extractables, suitable for most chemicals and organic solvents filtration in the electronic industry.
The PFLH series flter cartridge uses modifed hydrophilic PTFE membrane, which can directly filter polar solutions without pre-wetting, reducing operation time and usage costs. PTFE filter membrane provides excellent particle capture performance, offering up to 99.99% particle interception efficiency.
|
Material Constructions
|
|
|
Filter Media
|
PFL: Hydrophobic PTFE Membrane
PFLH: Modified Hydrophilic PTFE Membrane |
|
Support/Drainage
|
Polypropylene (PP)
|
|
Cage/Center Core/End Cap
|
Polypropylene (PP)
|
|
Seal Material Options
|
EPDM, Encapsulated FEP
|
|
Max. working pressure differential
|
0.3Mpa
|
|
Max. working temperature
|
80°C
|
|
Series
|
Micron Rating
|
Length
|
End Cap Type
|
Seal Material
|
||||
|---|---|---|---|---|---|---|---|---|
|
PFL/PFLH
|
0005 = 0.05µm
0010 = 0.1µm 0022 = 0.22µm 0045 = 0.45µm 0100 = 1.0µm |
05 = 5"
10 = 10" 20 = 20" 30 = 30" 40 = 40" |
C1 = 226/Spear
C3 = 222/Spear C5 = 222/Flat C6 = 226/Flat C9 = DOE |
E = EPDM
S = Silicone V = FKM P = FEP |
||||
Since: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.
Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
A: Yes, size, color, logo and packaging style all can be customized.
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
