Szczegóły Produktu:
|
| Obszar filtracji: | 1,0-1,1㎡/10 cali | Certyfikacja filtrów: | ISO9001 |
|---|---|---|---|
| OD: | 69 mm | Sugerowane ciśnienie do wymiany filtra: | 1,5 bara |
| Maksymalny natężenie przepływu: | 10" - do 1,0 m3/h; 20" - do 2,0 m3/h; 30" - do 3,0 m3/h; 40" - do 4,0 m3/h | Marka: | Ściągacz |
| Natężenie przepływu filtra: | 1,0-4,0m3/h | Długość: | 20 cali, 40 cali, 60 cali |
| Tworzywo: | PP, GF, PTFE | ||
| Podkreślić: | Double open ended,PES membrane |
||

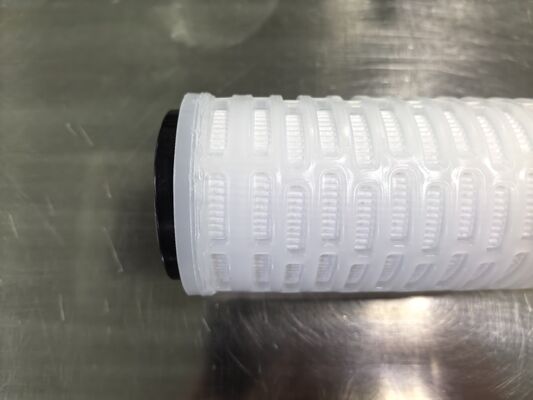

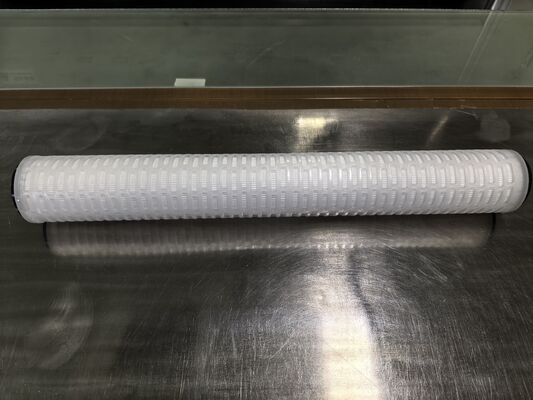

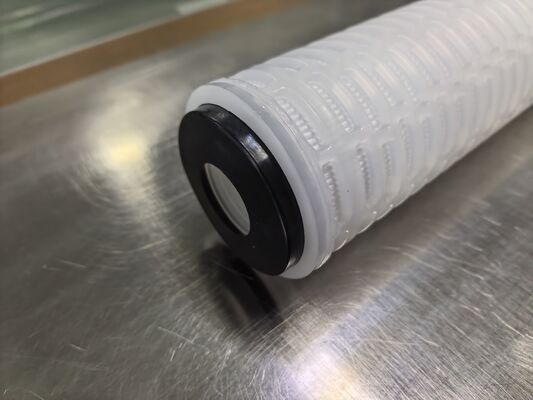

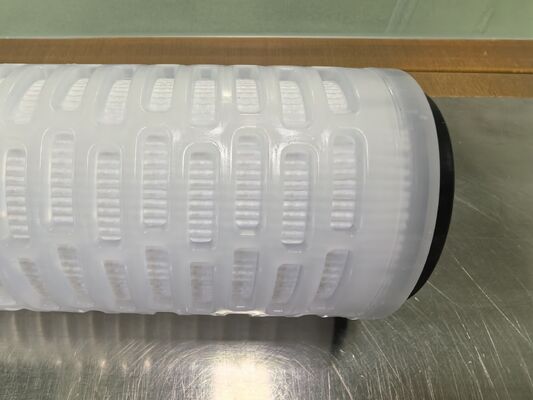

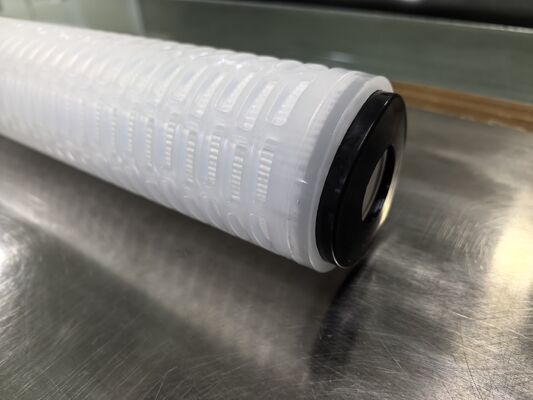

The 40-inch PES pleated filter cartridge is designed for high-purity liquid filtration and demanding chemical filtration applications where excellent chemical compatibility, stable filtration performance, and low contamination risk are required.
Made with PES pleated membrane media, this filter cartridge provides strong resistance to acids, alkalis, organic solvents, oxidizing agents, and other aggressive chemicals. The pleated structure offers a large effective filtration area, helping to achieve high flow rate, low pressure drop, and longer service life compared with conventional depth filter cartridges.
The cartridge is suitable for precision filtration in chemical processing, electronics, semiconductor wet process, high-purity chemicals, solvents, and other critical liquid filtration systems. Its stable pore structure helps remove fine particles and protect downstream processes or equipment.
The 40-inch length makes it suitable for higher-flow systems while reducing the number of cartridges required in the housing. Different micron ratings, end cap styles, sealing materials, and connection types can be customized according to the actual working conditions and filter housing design.
Certified to ISO9001, ISO14001, and ISO45001, Pullner PES pleated filter cartridges are manufactured under strict quality, environmental, and occupational health and safety management systems to ensure stable product quality and reliable filtration performance.
Suggested differential pressure for replacement: 1.5 bar.
| Product Name | PES Pleated Filter Cartridge |
|---|---|
| Brand | Pullner |
| Length | 20", 40", 60" |
| Outer Diameter (OD) | 69mm, customized |
| Max. Flow Rate | 10" - up to 1.0 m³/h; 20" - up to 2.0 m³/h; 30" - up to 3.0 m³/h; |
| Filtration Area | Approx. 0.5 m² per 10" |
| Suggested ΔP for Replacement | 1.5 bar |
| Certifications | ISO9001, ISO14001, ISO45001 |
We provide technical support for installation, operation, and maintenance, as well as routine services such as filter replacement guidance and maintenance recommendations. Comprehensive documentation is available, including user manuals, installation guides, and troubleshooting notes.
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.
Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.
The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.
